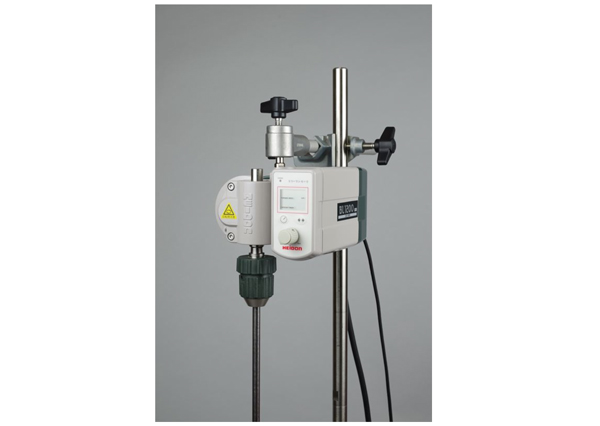

Image of BLh1200Ft
High Power Agitators with External Output
BLh1200Ft

For the Ft Series, an automatic timer has been added to the forward/reverse rotation function of the general purpose agitator BL Series.
Using the automatic forward/reverse rotation, the agitation efficiency is greatly improved. In addition, the rotation speed and conversion torque are output as analog voltages from the output connector so that changes in viscosity can be measured using a recording meter during the agitation.

Features
  • During the agitating operation, one-switch operation allows the rotation direction to be changed, and the timer allows automatic forward/reverse rotation agitating to be carried out.
  • The rotation speed and conversion torque values are output as analog voltages so that changes in the viscosity can be determined.
  • During the agitating operation, even if there is a change in the viscosity, the set rotation speed will be maintained.
  • A strong brushless motor is used that does not generate sparks, and the motor part is maintenance-free.
  • A collet-type hand-tightening chuck is utilized.
  • Noise countermeasures are implemented so that mistaken operation does not occur and is not caused in other instruments.
  • For the overloading protection of the agitation motor, protection equipment including a current restricting circuit and thermal protector are provided.
Feature image
Feature image
Feature image
Specifications
BLh1200Ft
Applications
Low to Medium Viscosity
Rotation Speed
10～1200rpm
Rated Torque
0.6N･m
Motor
DC Brushless Motor B Type Insulation 80W
DC Brushless Motor B Type Insulation 80W
Feedback Control, Forward/Reverse Rotation Switching (Timer mode, manual)
Forward/Reverse Rotation Timer
5, 10, 20, 30, 45, or 60 sec Setting Switching Possible
Rotation Speed Output
Analog Voltage: DC0-5V
Converted Torque
Analog Voltage: DC0-5V
Panel Display
Rotation Speed Digital 4 Digits and Overload Display; Torque Indicator (1 Graduation 20%)
Chuck
φ8mm Collet-type Hand-tightening Chuck
Safety Equipment
Current Restricting Circuit, Thermal Protector: Motor Coil Temperature 90℃, Safety Cover
Power Cable
2m Power Cable with 2-pole Grounded Plug
Power Supply and Consumption
Single Phase 100V±10%, Joint Use 50/60Hz, 200VA
Option:110 – 230V
Dimensions and Weight
Main unit: W135mm x D170mm x H211mm, 2.3Kg
Standard Accessories
Clamp Holder (Type: 21 x 16) 1 piece, Safety Cover
