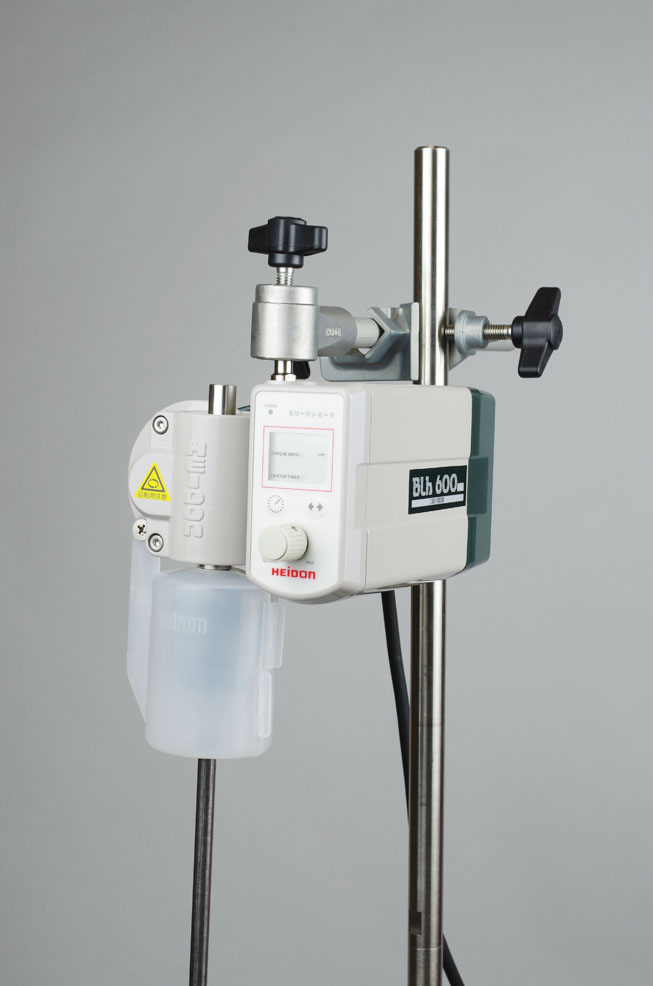

Image of BLh300/BLh600/BLh1200/BLh3000
High Power General Purpose Agitator
BLh300/BLh600/BLh1200/BLh3000

The series utilizes a high output 80W brushless motor that was developed to handle demanding agitation situations.
These strong laboratory agitators generate twice as much torque as the BL series.
The automatic forward/reverse rotation function with timer allows changing of the rotation direction to eliminate the ring-shaped unmixed area that is generated with one-directional agitation.

Features
  • Realizes twice as much torque from approximately the same size as the previous BL Series instruments, allowing high viscosity agitation and the use of large sized blades.
  • The exceptional quietness will not interfere with the laboratory environment.
  • During the agitation, even if there are changes in viscosity the set rotation speed will be maintained.
  • Utilizes a powerful brushless motor that does not generate sparks.
  • During agitating work, one-switch operation changes the rotation direction.
  • Does not output noise that would adversely affect other equipment, and incorporates measures to prevent mis-operation even when affected by noise.
  • Provided with protection equipment such as a current restricting circuit and thermal protector to protect against agitator motor overloading.

* Note: Compared with this company�fs BL Series products. Actually has become larger by D15mm, H10mm.

Feature image
Operation image
Specifications
BLh300/BLh600/BLh1200/BLh3000
Applications
BLh300:High Viscosity
BLh600:Medium to High Viscosity
BLh1200:Medium to Low Viscosity
BLh3000:Low Viscosity
Rotation Speed
BLh300:5~300rpm
BLh600:10~600rpm
BLh1200:20~1200rpm
BLh3000:50~3000rpm
Rated Torque
BLh300:2.6N・m
BLh600:1.3N・m
BLh1200:0.6N・m
BLh3000:0.2N・m
Motor
BLh300 : DC Brushless Motor B Type Insulation (130℃) 70W
BLh600/BLh1200/BLh3000 : DC Brushless Motor B Type Insulation (130℃) 80W
Rotation Control
Feedback Control and Forward/Reverse Rotation Switching (Timer mode, manual)
Forward/Reverse Rotation Timer
5, 10, 20, 30, 45, 60 sec Setting Switching Possible
Panel Display
Rotation Speed Digital 4-digits, and Overloading Display; Torque Indicator (1 graduation 20%)
Chuck
φ8mm Collet-type Hand-tightening Chuck
Safety Equipment
Current Restricting Circuit, Thermal Protector: Motor Coil Temperature 90℃, Safety Cover
Power Cable
2m Power Cable with 2-pole Grounded Plug
Power Supply and Consumption
Single Phase 100V±10% Joint Use 50/60Hz 200VA
Option 110-230V
Dimensions and Weight
Main Unit: W135mm x D170mm x H211mm, 2.2Kg
Standard Accessories
Clamp Holder (Type: 21 x 16) 1 piece, Safety Cover
